FTTH CATV Optical Receiver FTTH Mini Node 5~1000MHz Optimized Circuit Desig

Product Categories

SHAANXI JIZHONG ELECTRONICS SCIEN-TECH CO.,LTD.

Contact Now

Name: FTTH CATV Optical Receiver FTTH Mini Node 51000MHz Optimized Circuit Desig
Brand: JiZhong
Price: 1 USD

Brand Name : JiZhong

Model Number : JZORH1000-1BIX

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

Packaging Details : Standard export packing

Input opical power : -20~0dBm

AGC range : -15~-8dBm

RF in band flatness : ±1dB

Output reflection loss : ≥14dB

Output Level : 75dbuv±1(-12dBm)

Power adapter : 5v/0.5A

Power consumption : 1.3W

Size : 76x63x30mm

Contact Now

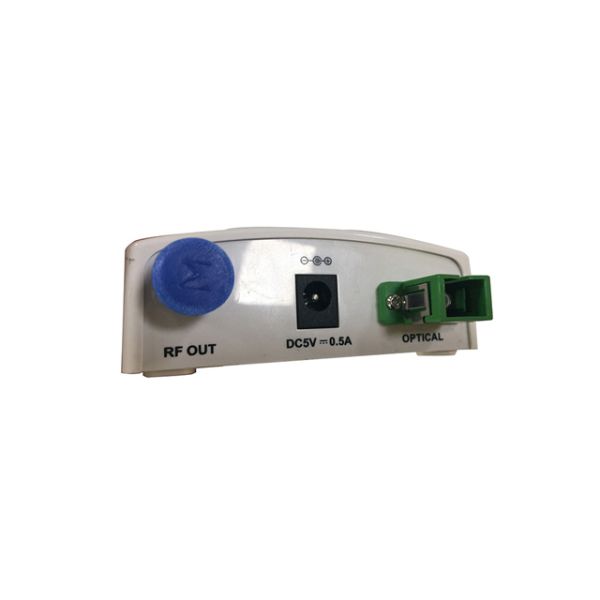

Digital AGC CATV FTTH Receiver FTTH Mini Node Mini Active Optical Node

Characteristics:

LED displays output optical power working status;

5~1000MHz optimized circuit design;

High responsivity PIN photovoltaic conversion and high working reliability;

Extremely wide operation range, working normally even in -20dBm optical power;

Advanced power conversion, 0.7W device power consumption and excellent linear output;

Multiple protected circuit makes the device more secure and reliable;

Technical Parameters:

Item	Unit	Technical data	Remark
Downlink receiver parameters:
Forward working broadband	MHz	45~1000
Nominal input optical power	dBm	-20~-5
Optical AGC range	dB	-15~-8
Optical working wavelength	nm	1100~1600	Double window
Optical reflection loss	dB	>45
Equivalent input noise current	PA/	≤8
Optical connector type		SC/APC or FC/APC	Optional
RF in band flatness	dB	±0.5
Output reflection loss	dB	≥14	OMI=3.5%, 59 way PAL-D analog TV channel, testing when input optical power 7dBm.
C/N	dB	>46
C/CSO	dB	>62
C/CTB	dB	>62
Classical output level	dBuV	71
MER	dB	≥35	Testing when input optical power is -15dBm
MER	dB	Testing in -12dBm
RF output port		F-type standard interface
Power adapter parameters
Power adapter input voltage	V	265	AC
Power adapter output voltage	V	5	DC
Device Parameter
Operating temperature	℃	-25~+60
Storage humidity	℃	-40~+65
Relative humidity	%	Max 95, non-condensing
MTBF	h	80000
Power consumption	W	0.7	include power adapter
Structural size	mm	76x67x30	exclude input & output head

Product Tags:

ftth micro node
